The installation site of Kingwood biomass pellet production line with a production capacity of 12t/h. The equipment composition is described below.
Two sets of four screw conveyors transport wood chips.

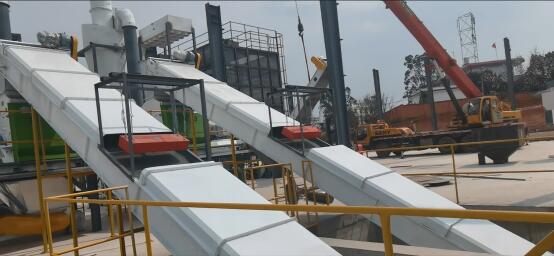

Conveyor belt conveying wood chips to wood hammer mills
This involves determining the size and capacity of the conveyor you need. This will depend on the amount of wood chips you need to transport and the distance between the conveyor and the shredder. Install the conveyor belt, ensuring it is securely fastened and properly aligned. The belt should be horizontal and straight to ensure smooth operation. Position the conveyor belt so that it can feed the wood chips directly into the shredder. It may be necessary to adjust the angle or height of the conveyor belt to achieve the ideal wood chip flow to ensure that the wood chips are fed into the belt in a consistent manner. You may need to use a hopper or other feeding mechanism to regulate the flow of wood chips onto the belt.
Two 120T model wood hammer mills
Wood hammer mills are machines that are used to grind wood chips, sawdust, and other wood materials into small particles. These machines are typically used in wood processing facilities, where large volumes of wood waste need to be processed quickly and efficiently.
The
hammer mill works by using a series of rotating hammers to pulverize the wood material. The hammers are mounted on a rotor, which spins at high speed inside a chamber. As the wood material enters the chamber, it is struck by the hammers and broken down into small particles.
The size of the wood particles produced by a hammer mill can be adjusted by changing the size and number of the hammers and the spacing between them. This allows the machine to produce particles of varying sizes, depending on the specific application. Wood hammer mills are commonly used in the production of wood pellets, animal bedding, and other wood products. They are also used in the recycling industry to process wood waste and other materials into usable products.

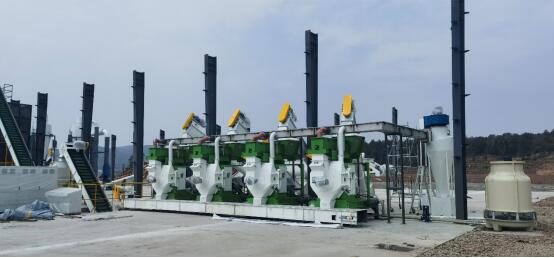

4 sets of 688D pellet machines, using 200kw servo motors
A
pellet machine is a type of machinery that is used to compress biomass materials such as wood, sawdust, straw, and other agricultural residues into pellets. The pellets produced by a pellet machine are typically used as a fuel source for heating, cooking, and generating electricity. Pellet machines come in different sizes and configurations depending on the type of material being processed, the required pellet size and production capacity. Some common types of pellet machines include flat die pellet mills,
ring die pellet mills, and
vertical pellet mills. Each of these machines has its own unique features and advantages.

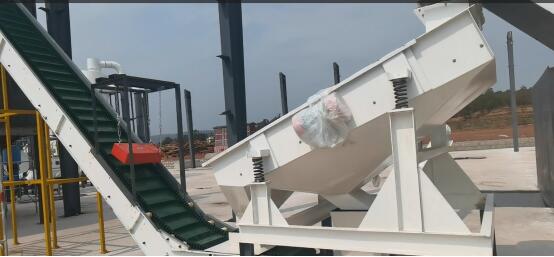

Shaker
A wood pellet vibrating sieve is a piece of equipment used in the wood pellet production process. The sieve is designed to remove any oversized or undersized particles from the wood pellets, ensuring that only the correctly sized pellets are packaged and sold. The vibrating sieve operates by passing the wood pellets through a series of screens that vibrate at a high frequency. As the pellets pass through the screens, the larger particles are separated and removed, while the correctly sized pellets pass through the sieve and continue on to the next stage of the production process. The design of the vibrating sieve can vary depending on the specific requirements of the wood pellet production process. Some sieves may have multiple screens to remove particles of different sizes, while others may use a single screen.

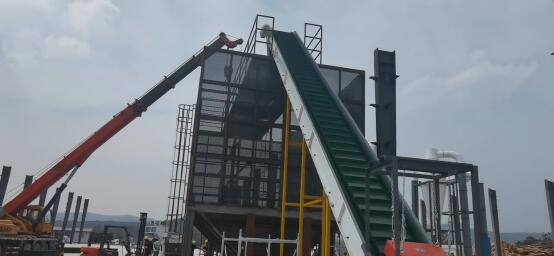

Super large finished products warehouse cooling
A wood pellet cooler is a machine designed to cool wood pellets that are used as fuel for cookers, boilers and other heating systems. Wood pellets are made by compressing sawdust or other wood waste into small, dense particles. They have a high energy density and are a popular and environmentally friendly alternative to fossil fuels. After being compressed, wood pellets are often hot and may contain up to 10% moisture, which can cause them to decompose or degrade if they are not properly cooled before storage or transport. Wood pellet coolers work by blowing cold air through a bed of hot wood pellets, lowering their temperature and removing excess moisture. The cooling process is essential to ensure that the wood pellets remain in good condition and retain their energy content. Wood pellet coolers also help to increase the efficiency and longevity of heating systems using wood pellets by preventing blockages and reducing the risk of fires.
About Kingwood
Kingwood located in Zhongguancun Industrial Park of Liyang City, Jiangsu Province, China. It is a high-tech enterprise dedicated to developing low-carbon, renewable energy equipment and advanced feed mill industry. Established in 1999, Kingwood has been providing a one-stop solution in biomass engineering, animal feed engineering, and spare parts business for our valued customers. Services of Kingwood include consultation, design, manufacture, logistic, installation, commissioning, training, and after-sales service for biomass/feed production line. Kingwood currently has ISO9000 and ISO14000 systems, certified by CE, and has won many awards in the biomass equipment industry. Kingwood currently has a large CNC punching center, a pellet machine assembly, a testing center, a large embryo forging base, a production line auxiliary equipment manufacturing base, a pellet production test center, and so on. Products are subject to strict quality control from raw material procurement, spare parts processing, heat treatment, welding, and assembly to finished product shipment. Kingwood stands for quality, service, and reasonable price - core values to which the company is committed.
